Belt Tower Pumping Unit

  • Beam pumping unit is the most extensively used mechanical equipment in oilfield, but there exist many inherent defects. Such as high energy consumption, low mechanical efficiency, difficult to realize long stroke.
  •  Belt Tower pumping unit is developed to solve the inherent defects of beam pump.

Belt tower pumping unit is specially designed to solve the inherent defects of beam pumping unit. It has the advantages of energy saving, convenient parameter adjustment and long stroke.

https://youtu.be/6N84CQUqfQM

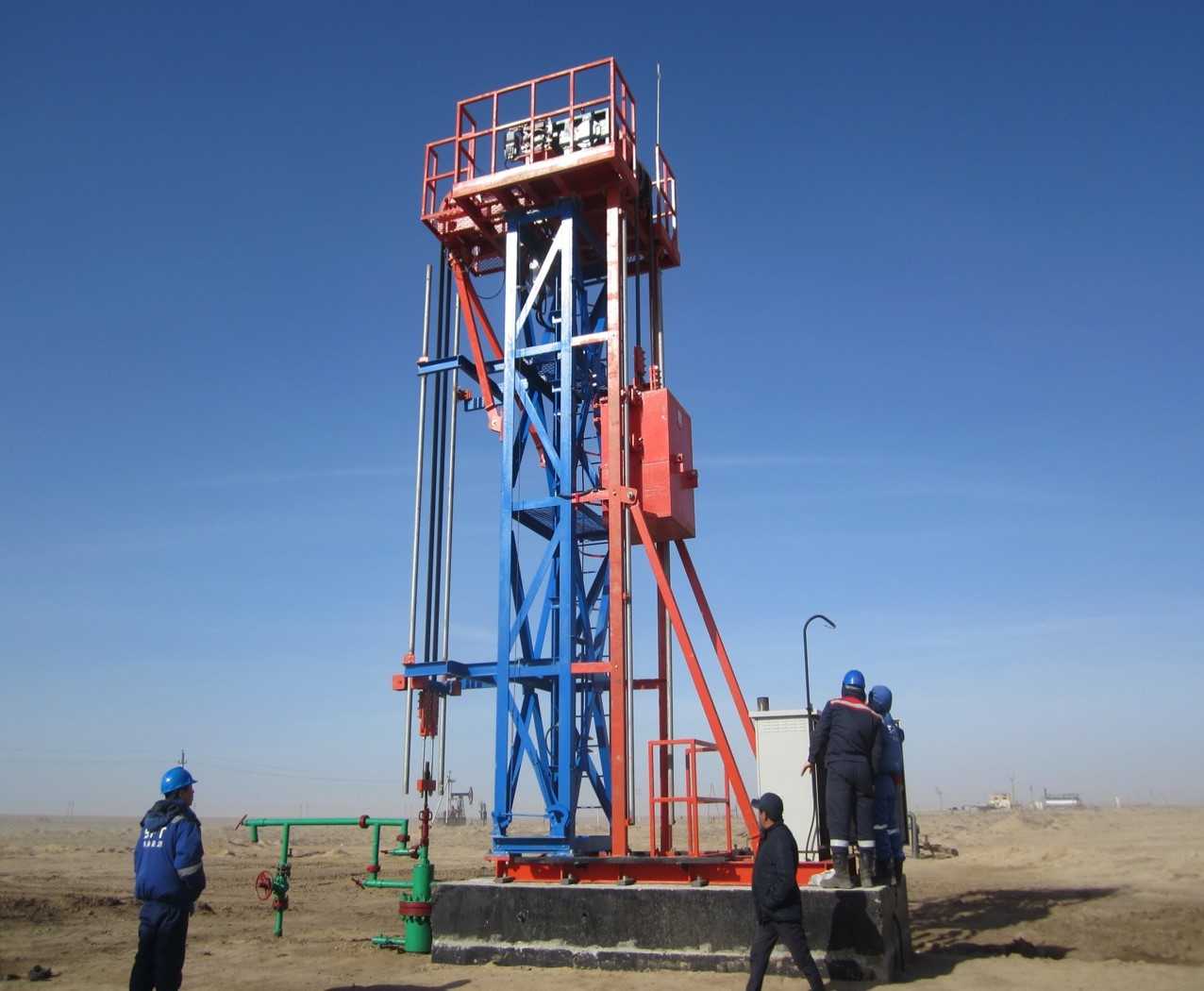

1. Main Structure:
1) Frame System
Its main components are upper platform, main frame, front and rear support, large base and cement foundation composed of steel structure. Support the upper platform to ensure maximum stroke of the polished rod.

2)Power Unit
Installed on the upper platform, it includes motor, drive wheel, guide wheel, coupling, reducer, automatic brake, manual brake, etc., which is the executive part of the pumping unit to transmit torque.

3) Counterweight System
It consists of a weight box (main, auxiliary), slide and pulley block. Accurately adjust the weight of the distribution box and the balance of the rod end to make the machine run smoothly and save energy.
4) Control System
It consists of motor, SR controller, programmable logic controller (PLC) and various operation buttons. It is a stepless speed regulating system, which has the fuction of automatic and manual control mode of equipment and fault display.

5) Safety System
It consists of an up and down (double) limit switch, proximity switch, automatic (manual) brake device, lightning arrester and distribution box buffer pit. The system ensures the overall safe operation of the equipment.
6) Auxiliary system
Load sensor, liquid level detector, monitoring, acquisition system, etc.
6). Security system
Multiple Security Protection
Automatic alarm and brake for overload, overspeed and lack of phase.
Loss of Load Protection
Sudden rod breakage and other faults cause loss of load, and there is brake protection
2.Features of the tower type belt driven pumping unit
1) Power saving 30% ~ 50%, small torsion arm, accurate balance
2) The stroke length is 1 ~ 10 meters, and the data of stroke and stroke times are displayed online
3) Fine working condition, stable operation, small impact, low noise 70dB.
4) Multiple safety protection: complete protection measures for phase loss, overspeed and loss of load.
5) Touch the display to adjust stroke and stroke times.
6) Automatic fault alarm display.
7) The motor power factor is 0.993.
8) Equipped with 485 and 232 communication interfaces to support centralized control of multiple machines.
9) The whole machine and electric control cabinet are equipped with lightning protection devices.
10) Equipped with load sensor and online work drawing collection function.
3.Support centralized control to realize automatic oil production in cluster wells

https://youtu.be/VUF7cmok31A
